Electrical clearance & creepage analysis

Electrical assemblies contain networks with different voltages, between which short circuits can occur. Today, the minimum distances between different electrical networks must be estimated during the design phase or measured manually.

This very time-consuming and inaccurate undertaking often leads to unnecessary production loops and, in the worst case, to a series recall.

The Solution

AutoCrear offers robust and efficient software-based analysis of all air and creepage distances on CAD data for electrical assemblies. Years of research have made it possible to accurately determine air and creepage distances even on larger assemblies.

For the first time, developers of electrical assemblies now have a robust tool at their disposal to identify and specifically eliminate all non-compliance with standards during the design phase. Comprehensive and uniform documentation is automatically generated, which massively optimizes and accelerates the production process.

Additional information can be found in this video:

Our offer/approach

• Stand Alone: AutoCrear is a solution for the complete analysis workflow.

• Multi CAD: Applicable with all major CAD systems.

• Printed circuit boards: PCB boards can also be checked as an option.

• Simple: No special data preparation required.

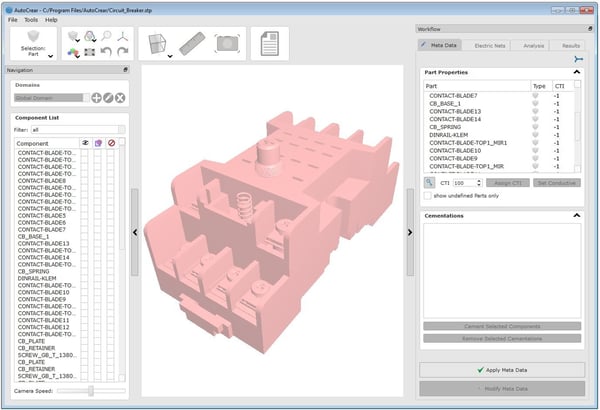

• Clear: Integrated powerful 3D viewer.

• Convenient: The workflow and results management are very easy to use.

• Practical: Automatic generation of an analysis report.
